Efficience

Concentric chimney system for wood log appliances

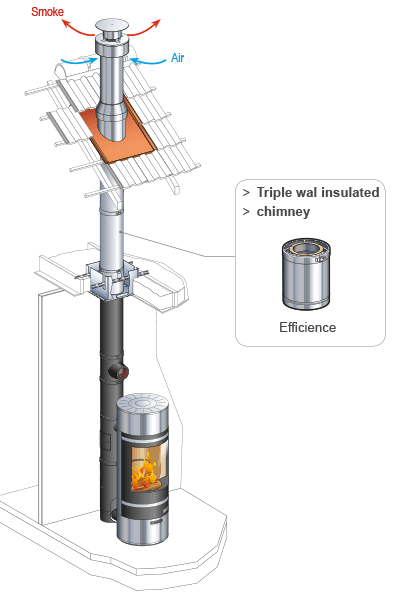

The Efficience chimney system is a concentric insulated chimney with mineral wood insulation allowing the connection of combustion air and the smoke exhaust. This chimney system works under negative pressure and optimises the appliance’s efficiency.

Efficience is designated T450…G50 and provides the same level of security as other Poujoulat twin wall chimneys.

This system is designed for stove, fireplaces, cookers etc…and can be used with appliances having top or rear connection.

This new generation of chimney flue has been developed in collaboration with the largest stove manufacturers to be used in dwellings where energy saving and thermal improvement are aimed at.

It is available in 5 diameters (Ø80, Ø100, Ø130, Ø150, Ø180 ).



CE              Ceric Label









Product details

> Optimizes the performance of the appliance.

> Avoid down-draught issues.

> Pre-fabricated chimney stack available.

> Available in any RAL colours.



All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards.







Poujoulat-produit Poujoulat-produit-mobile

Technical data





> Max. Temperature limitation: 450°C
> CE marking: 0071-CPR-24988
> Designation: T450 N1 D V2 L50040 G50 - Inner wall thickness: 0.4mm
> Insulation: 20mm high density mineral wool insulation.
>Air gap: 30mm

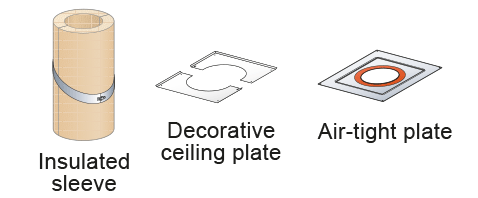

Air tight components

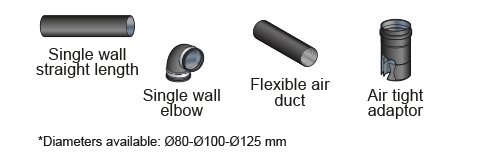

Combustion air components

Documentations



DOWNLOADS


CHIMNEY STACKS

EFFICIENCE - APPROVED APPLIANCES

Download PDF

EFFICIENCE

EFFICIENCE (INSTALLATION INSTRUCTIONS)

Download PDF



Our recommendation
