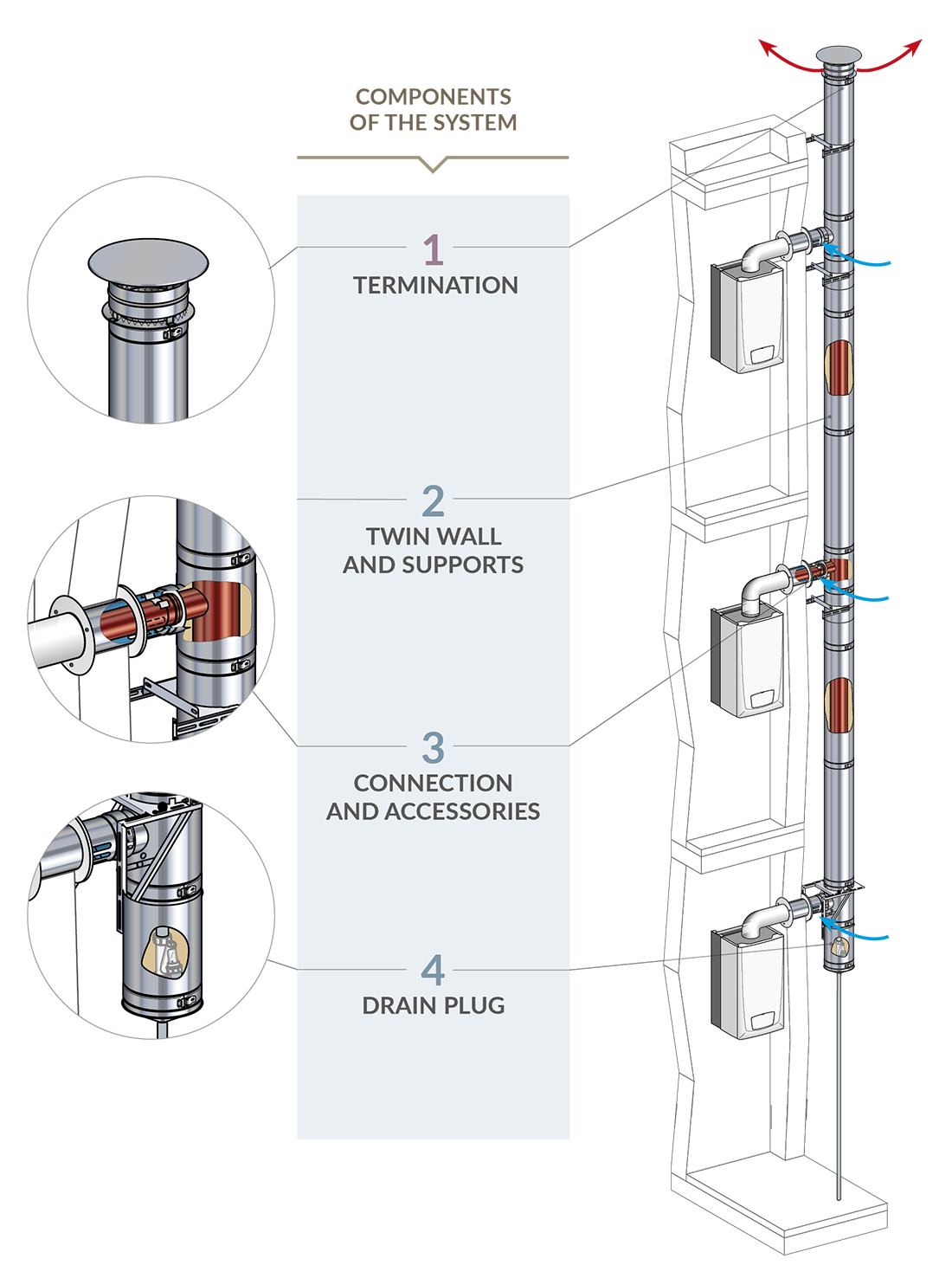

This flue system is a double wall insulated chimney for collective use to evacuate the smoke and to bring combustion air and allows the connection of 2 to 20 individual room-sealed boilers.
This collective flue system can be used both in new installations and in renovation and offers a wide and technical range for an easy installation and a quick access to the chimney for the cleaning. This system complies with the new building regulations.
The C8p boilers which are installed with the 3CE P Multi+ are all equipped with an anti back draught valve.
>Providing the designer the ability to use the minimum space with a shared system chimney.
>Watertight and pressure resistant up to 200Pa for the safe evacuation of flue gases. The system guarantees correct air supply to each appliance.
>Easy to install push fit system and integrated support components.
All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards.
> External wall in 304L stainless steel
> Inner wall in 316L stainless steel
> 30mm high density mineral insulationn
> Lip seals tightness on the inner smoke flue
