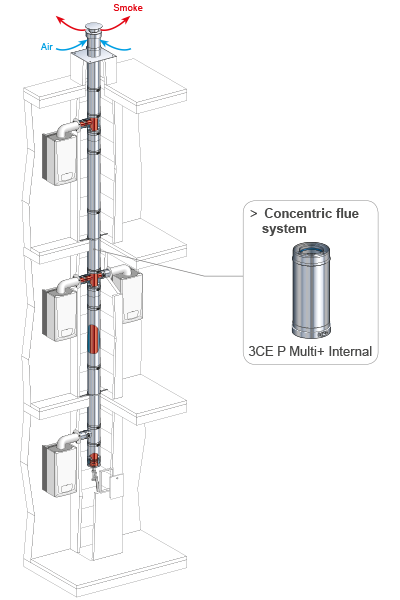

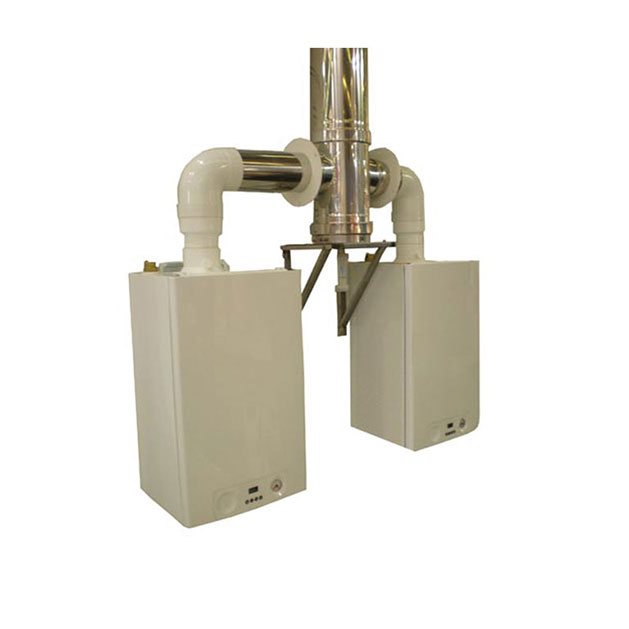

This flue system is a collective concentric chimney to evacuate the smoke and to bring combustion air to the boilers and allows the connection of 2 to 20 individual room-sealed boilers.
The sealing of the system is ensured by lip seals and allows the smoke exhaust in positive pressure, which considerably reduces its size in the shaft (more than 50%).
The boilers which are installed with the 3CE P Multi+ must all be equipped with an anti-back draught valve.
It is available in 5 diameters (from Ø80/130mm up to Ø230/350mm).
>Providing the designer the ability to use the minimum space with a shared system chimney.
>Watertight and pressure resistant up to 200Pa for the safe evacuation of flue gases. The system guarantees correct air supply to each appliance.
>Easy to install push fit system and integrated support components.
All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards.
> External wall in 304L stainless steel
> Inner wall in 316L stainless steel
> Lipped seals tightness on the inner smoke flue
