Condensor

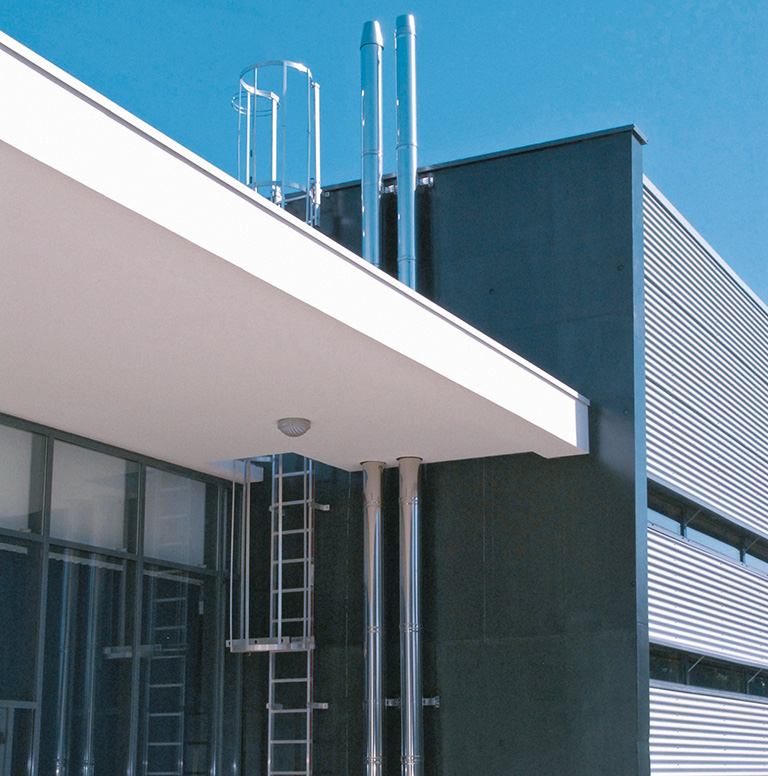

Single wall chimney system

Multi-fuel single wall chimney suitable for for the exhaust of smoke of any types of boilers. It is continuously welded to provide a pressure and moisture resistant system when used with the optional Joint Seal, for applications requiring pressure tightness up to 200 Pa.

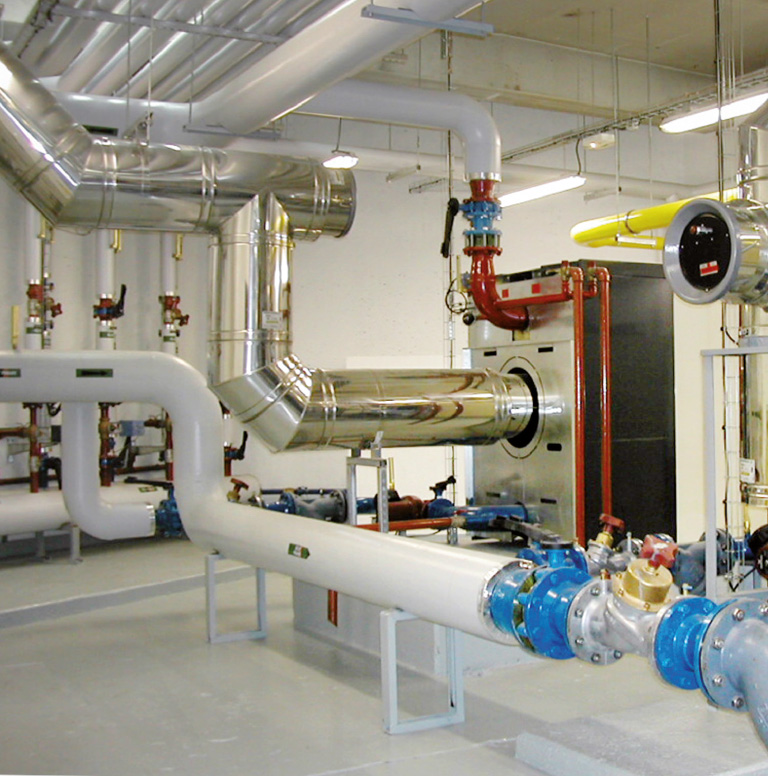

The Condensor range can also be used for the ventilation in the boiler rooms.

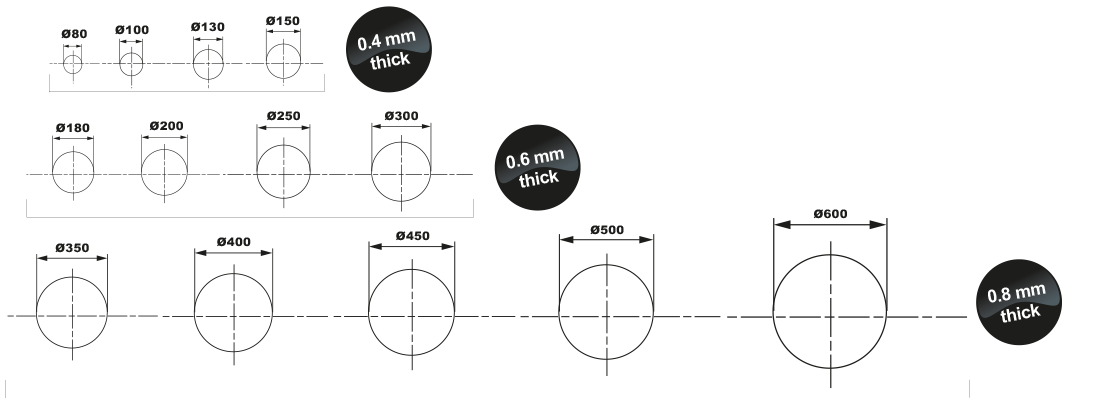

It is available in 13 diameters (from Ø80 up to Ø600mm)

Condensor is CE-marked no. 0071-CPD-0014 and no. 0071-CPD-00125.



CE              Ceric Label

Product details

> Condensor range is made out of 316L stainless steel and seam-welded.

> Perfectly water and pressure tight (< 200 Pa) thanks to its silicone seal installed on-site (temperature < 200°C).

> For specific headers Poujoulat can provide special parts especially for your installations.

> The Condensor range is not suitable for chlorinated or halogenated environments.

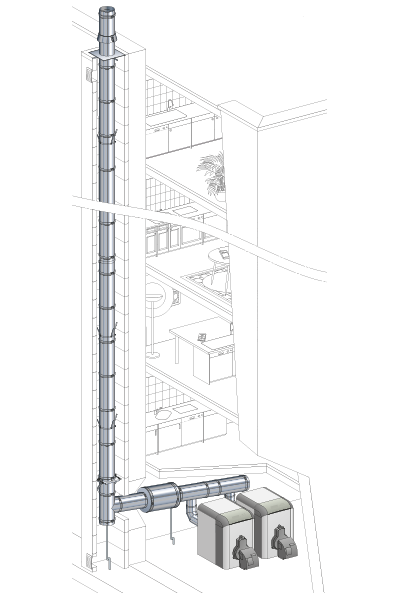

> Reducing tees, drain sections, increasers provide wide varying and flexible solutions to multiple boiler and cascade systems.

All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards.







Technical data

> Max. Temperature limitation: 250°C
> CE marking: 0071-CPR-0014

Ø80 to Ø150 T250 N1 W V2 L50 040 O50 T200 P1 W V2 L50 040 O50 (with joint seals)
Ø180 to Ø300 T250 N1 W V2 L50 060 O50 T200 P1 W V2 L50 060 O60 (with joint seals)
Ø350 to Ø450 T250 N1 W V2 L50 080 O75 T200 P1 W V2 L50 080 O75 (with joint seals)
Ø180 to Ø350 T250 N1 W V2 L50 080 O100 T200 P1 W V2 L50 080 O100 (with joint seals)

CONDENSING APPLICATIONS

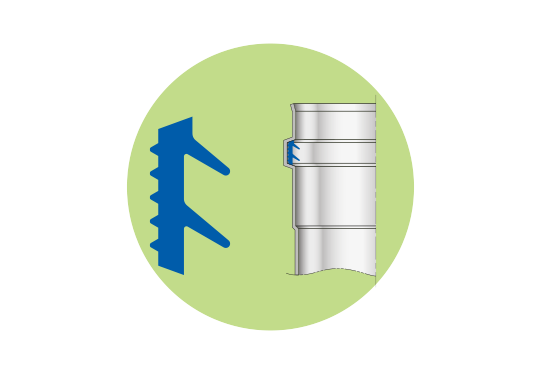

The CONDENSOR range can be used under positive pressure and suitable for condensing applications, by using a double lip silicone seal which ensures a perfect watertight joint. These seals must be purchased separately and fitted on site by a professional installer.
