THERMINOX

Multi fuel double wall insulated chimneys

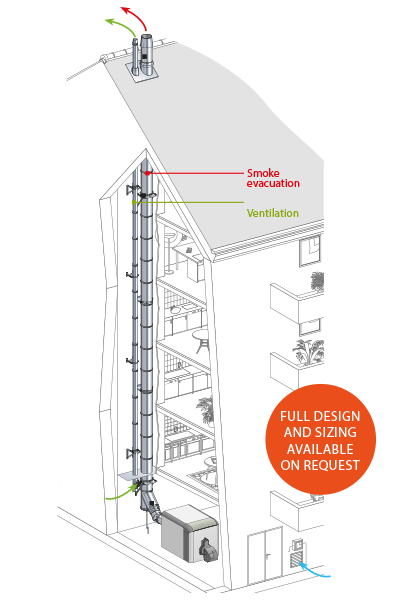

Therminox  insulated multi-fuel chimneys are suitable for the smoke evacuation from gas, oil, wood, wood pellet etc. stoves and boilers.
Cheminées Poujoulat can provide you with a complete and reliable solution for any types of installations inside or outside.

Therminox chimneys meet the new building restrictions and regulations guaranteeing air-tightness and user safety.

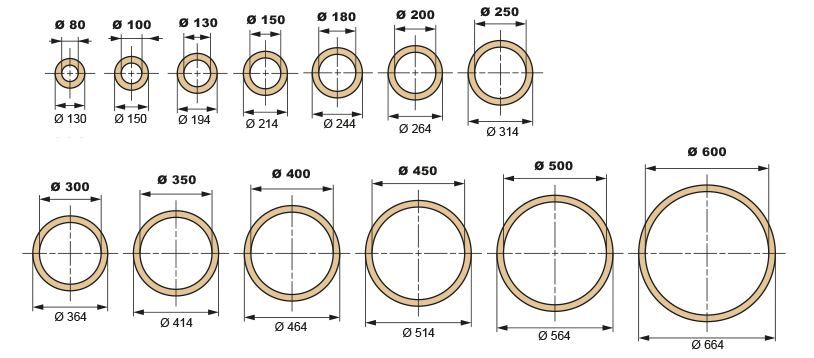

It is available in 13 diameters (from Ø80 up to Ø600mm).




CE              Ceric Label

Product details

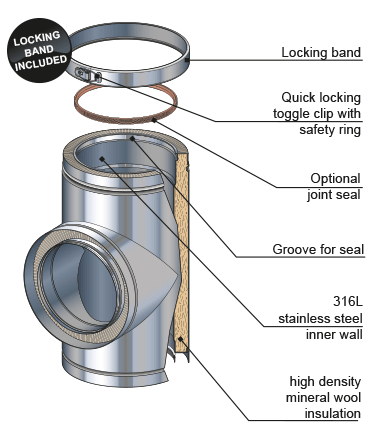

>Wide choice of diameters, accessories and finishes

> No heat bridges with its easy press fit connection

> The press-fit connection allow a 360°  flue rotation

> Locking band included with safety ring

> No overlapping locking band

> Seals mounted in the factory for diameters from ø350

> 3m maxi free standing height when using the reinforced locking band

All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards.







Poujoulat-produit Poujoulat-produit-mobile

Technical data

> Max. Temperature limitation: 450°C
> CE marking: 0071-CPR-0011
> Insulation: 30mm high density pressure injected mineral wool (25mm for Ø100mm).

Ø80 to Ø300 T450 N1 W V2 L50 040 G50 T250 N1 W V2 L50 040 O20 T200 P1 W V2 L50 040 O20*(with joint seals
Ø350 to Ø450 T450 N1 W V2 L50 050 G75 T250 N1 W V2 L50 050 O30 T200 P1 W V2 L50 050 O30* (with joint seals
Ø500 T450 N1 W V2 L50 050 G100 T250 N1 W V2 L50 050 O40 T200 P1 W V2 L50 050 O40*(with joint seals
Ø600 T450 N1 W V2 L50 060 G100 T250 N1 W V2 L50 060 O40 T200 P1 W V2 L50 060 O40*(with joint seals
