Twin wall insulated chimney system for CHP appliances

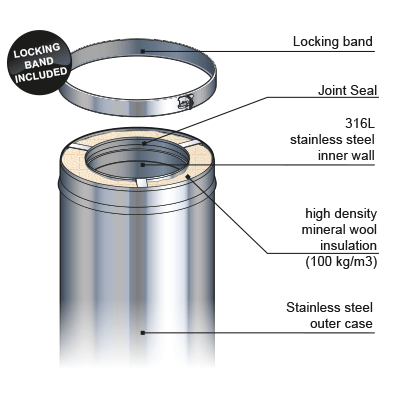

The Therm+ CHP is made out of 316L stainless steel for the inner wall. This range is designed for installation of CHP units with smoke temperatures up to 160°C and with a pressure of 5 000 Pa maximum. The inner wall’s thickness has been adapted to the mechanical strengths.

The new CHP range can be used inside or outside of buildings and offers a full range of accessories such as anti-vibration supports, anti-explosion or implosion tees, flange connectors, silencer and vibration compensator

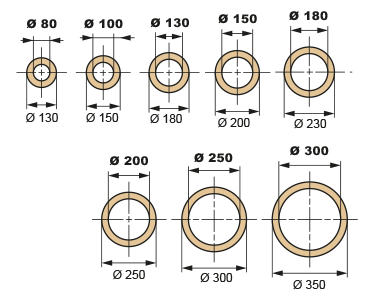

It is available in 8 diameters (from Ø80 up to Ø300mm).


CE              Ceric Label

Product details

Wide choice of diameters and accessories

Easy installation

> No thermal bridges at the junction of parts

> A 360° rotation of elements

> Locking band with easy safety ring


All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards (Building Regulation Document J - Amendments to Approved Documents).

Poujoulat-produit Poujoulat-produit-mobile

Technical data

> Max. Temperature limitation: 160°C
> CE marking: 0071-CPR-19655
> Insulation: 25mm

Ø80 to Ø130 T160 H1 W V2 L50 040 O20
Ø150 to Ø200 T160 H1 W V2 L50 050 O20
Ø250 to Ø300 T160 H1 W V2 L50 060 O20

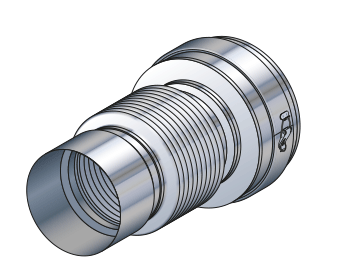

Anti-vibration appliance adaptor
> This component allows the connection of the appliance including an anti-vibration solution.

Our recommendation
