Enamel

Vitreous enamelled connecting pipe

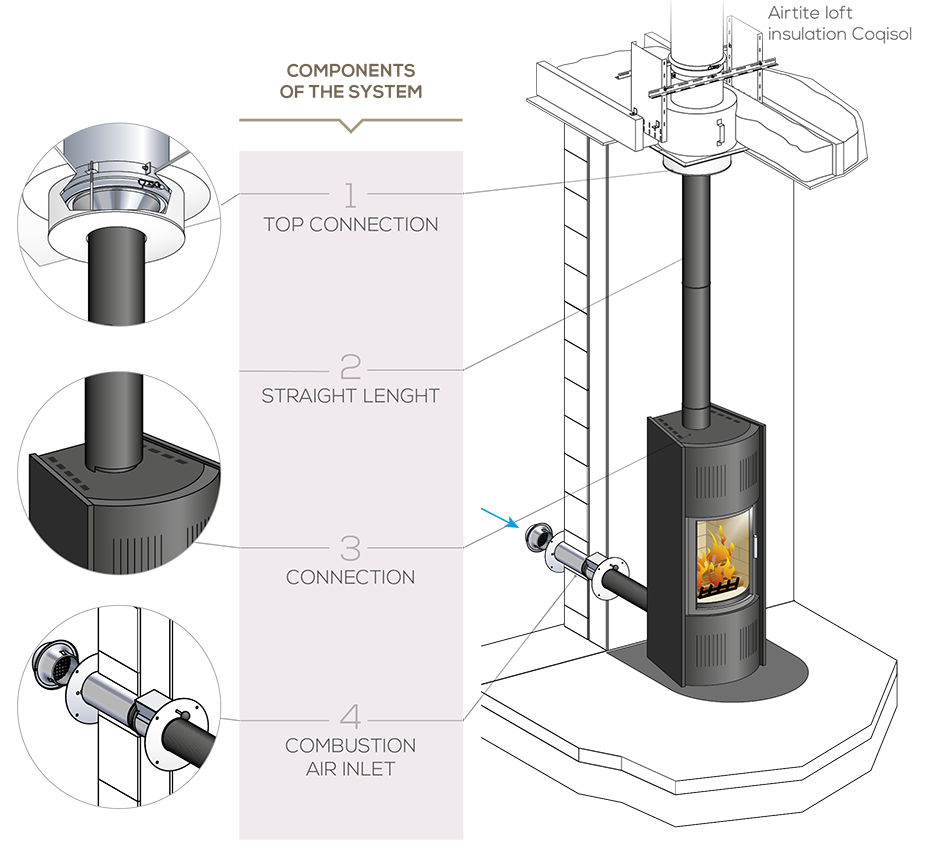

Vitreous enamelled pipes make the connection between a wood-burning stove and the flue.This range is made up of numerous elements and accessories (straight elements,tee-pieces,elbows, etc.) in a wide choice of diameters.

The vitreous enamelled range is cylindrical and seam-welded securing the tightness of the installation.

Easy to install range with the male/ female fitting.

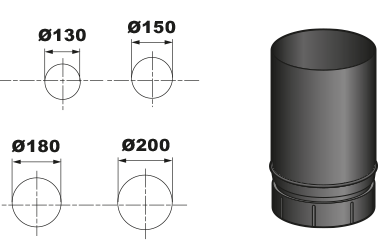

It is available in 5 diameters ( Ø130, Ø150, Ø160, Ø180 & Ø200) and can be supplied in 5 colours (Matt Black, Matt Grey, Gloss White, Gloss Brown and Gloss Black).



CE              Ceric Label

Product details

> Enameled connection pipe is seem welded with high quality of enamel coating – Male /female connection.

> The unique male/female spigot connection requires « no fixings and no fire-cement/sealant » and makes it possible to rotate elements 360° whilst maintaining a secure, quick and easy installation.

> Venting cladding can reduce the security distance to one diameter.

> Enamelled pipes are CE approved at T 600°C.



All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards.



Poujoulat-produit Poujoulat-produit-mobile

Technical data

> Max. Temperature limitation: 600°C

> CE marking: 407-CPR-007

> Designation: T600 N1 D Vm L80050 G(xx)

> You can achieve a clearance of 1 diameter using the "Ventilated Cover Pipe"(Tested to EN1856).
