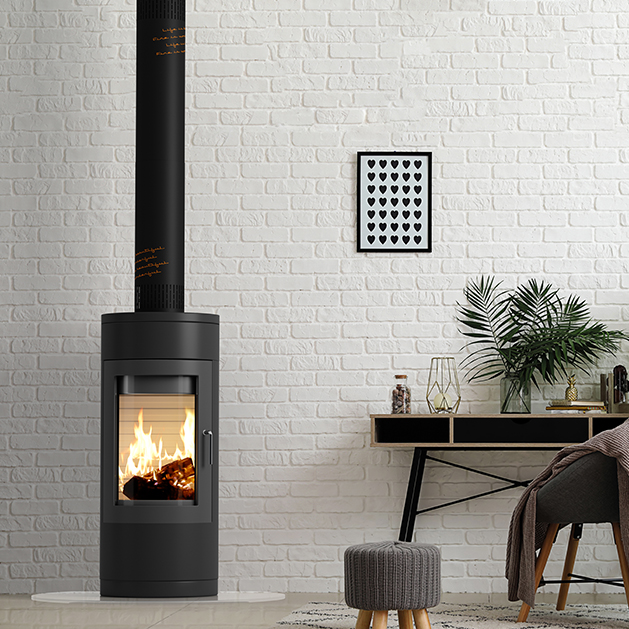

ventilated cover pipe Design'up indus

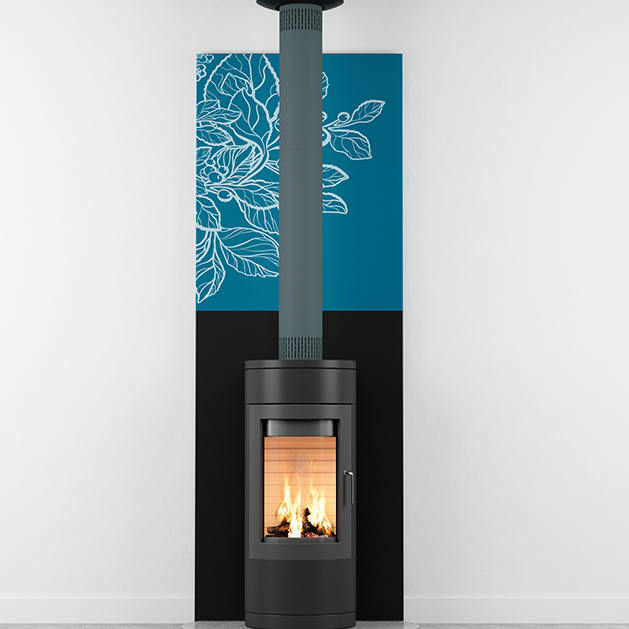

Ventilated cover pipe Design'up vert mousse
Ventilated cover pipe Design'up
Ventilated cover pipe
Ventilated cover pipe

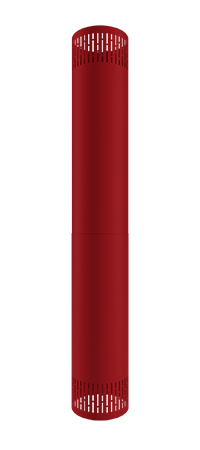

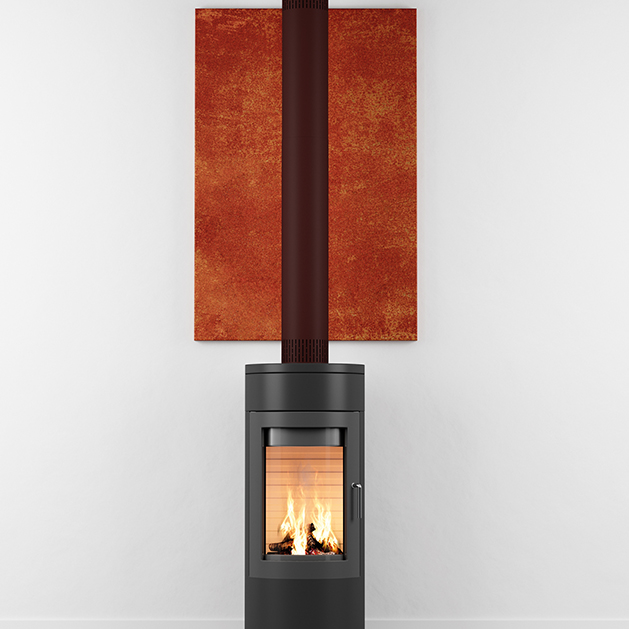

Ventilated cover pipe rouge feu
ventilated cover pipe Design'up indus

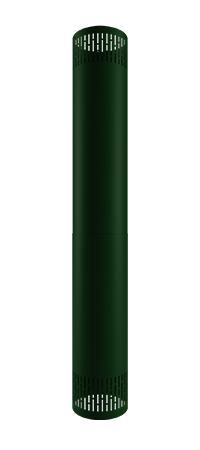

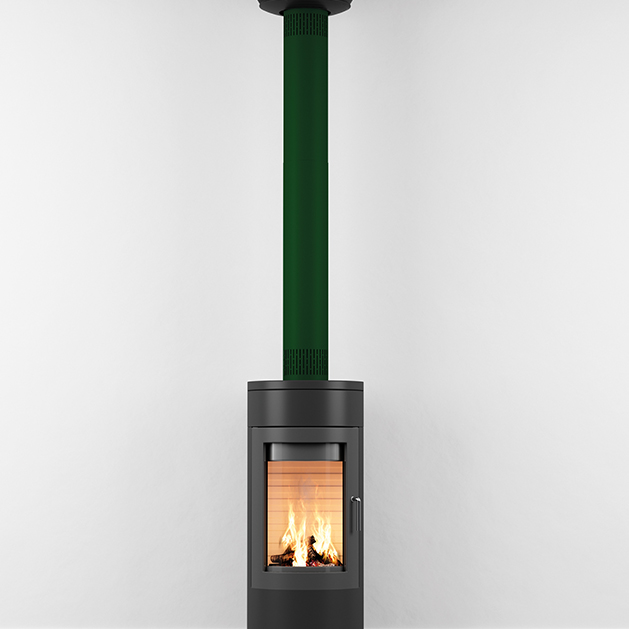

Ventilated cover pipe Design'up vert mousse
Ventilated cover pipe Design'up
Ventilated cover pipe
Ventilated cover pipe
Ventilated cover pipe rouge feu

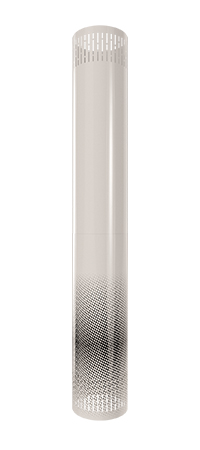

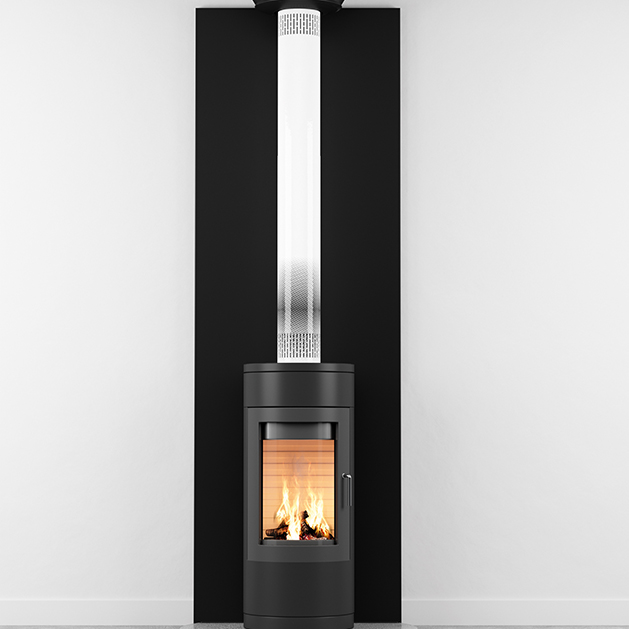

Ventilated cover pipe DESIGN'UP

Heat shield for connecting flue pipes

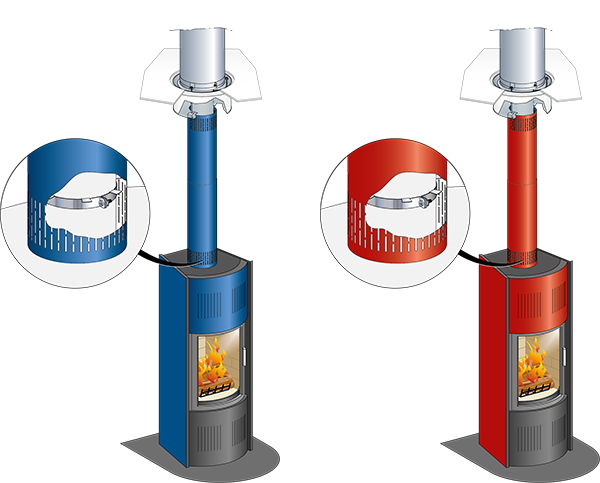

This system is composed of 2 sliding elements made of painted steel which makes the system fully adjustable.

You just easily fix it around the enamel or steel connecting pipe and it will match your appliance colours.

This Ventilated cover pipe allows to keep the clearance to combustible to one diameter instead of 3 in normal situation and this will comply with the local regulations.

The stove will remain with the installation regulations mentioned by the manufacturer.

CE Marked and tested, so that they can be installed over straight sections of Enamel, Startinox and 2 mm black pipe.

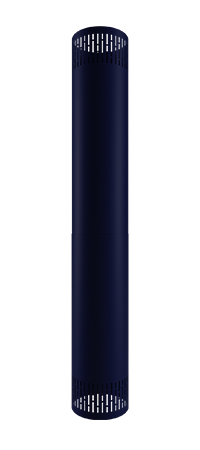

This system is available in black and in 3 deco versions and 9 RAL colors in order to match the stove colors. The ventilated cover pipe can be associated with the different wall finishing plates.

Top and bottom ventilation system allows a strong reduction of the contact temperature of your flue ensuring you an additional security.



CE              Ceric Label



Product details

> Fully seam-welded - 0.6mm thick - 316L stainless steel.

> Achieve a clearance of 1 diameter away from combustible materials.

> 2 models available up to 1500mm - composed of 2 adjustable elements.

> Quick and easy to install

> An aesthetic, pleasing appereance

All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards.







Technical data

A finish for every project

Different decorative and painted finishes  give more depth for your appliance or on the contrary, mingle discreetly with its environment.

Les 3 collections déco d'Habillage ventilé

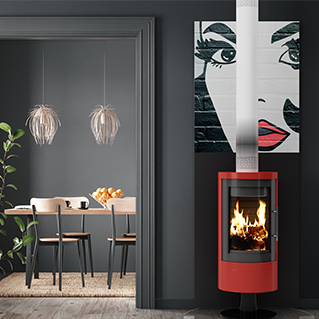

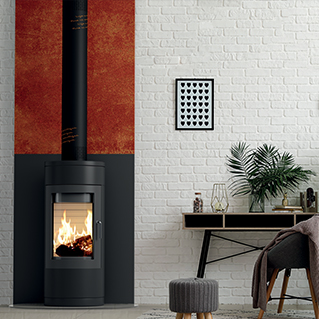

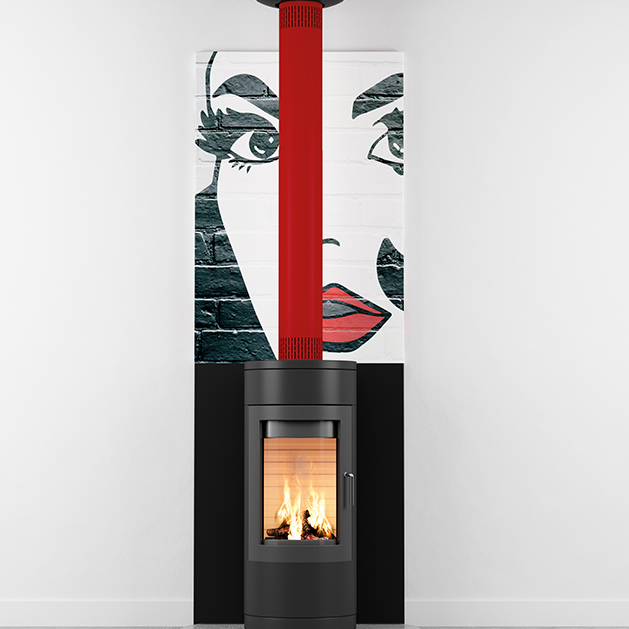

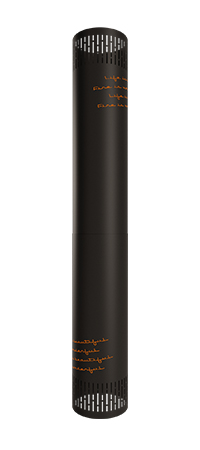

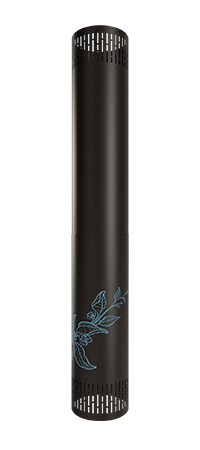

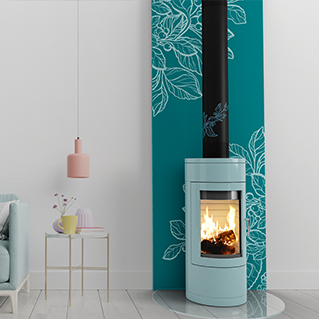

3 collections (BUCOLIQUE, POP'ART ET INDUS) are available on request.

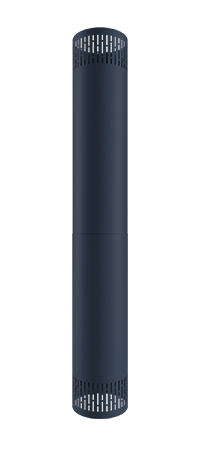

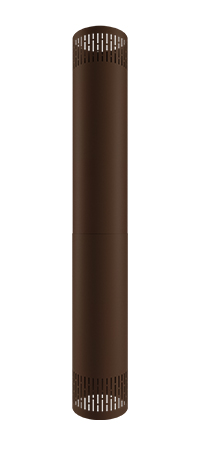

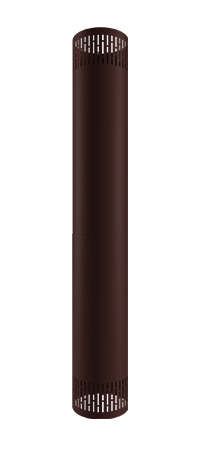

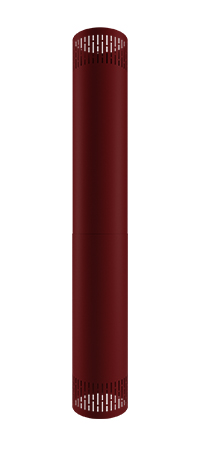

Ventilated cover pipe, 9 colors

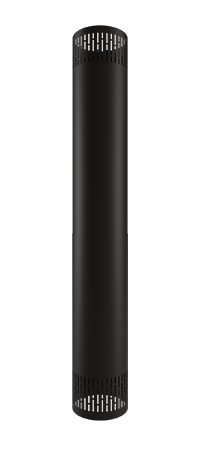

The MATT BLACK painted finish is available in stock, other colors are available on request.

Documentations



DOWNLOADS

ENAMEL PREMIUM
VENTILATED COVER PIPE (INSTALLATION INSTRUCTIONS)
Download PDF
