OUTSTEEL - VÉNITIAN

Casing for outside unit

With its venetian-like strips and its rounded angles, VENITIAN is a discreet element with smooth lines. Its wood-like top, on which you will be able to display light decorative elements or small plants, will make you forget about your outside unit hidden under.

The OUTSTEEL exclusive creation also offers as a standard two removable side doors for an even easier access to the unit. VENITIAN, a both useful and design element.

Read more details

Product details

VÉNITIAN OUTSTEEL porte latérale ouverteThe VENITIAN casing has been designed to hide in an aesthetic way the outside unit while in the meantime, protect it.

Available in 3 sizes, the VENITIAN offers two possible configurations :

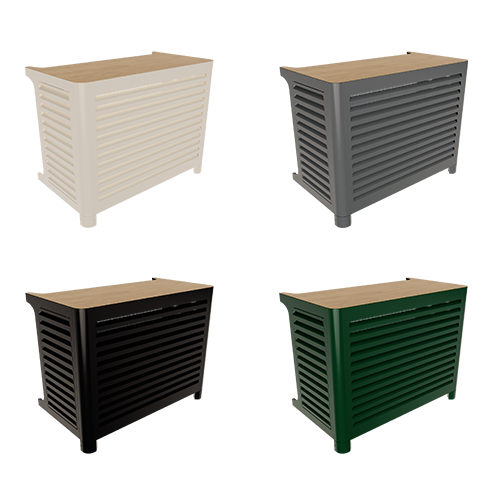

- Wall-fixed model with 2 front feet ;

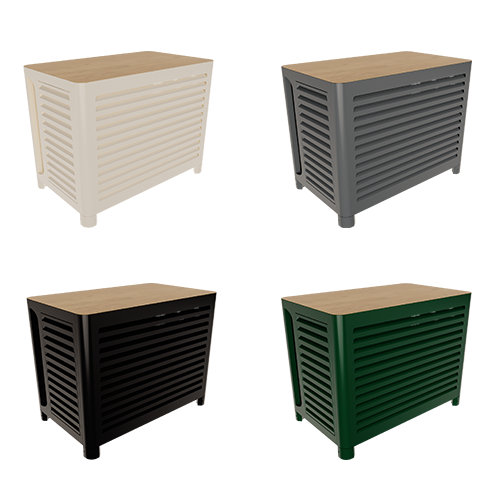

- Floor model with a back side and 4 feet.

VENITIAN is compatible with the main units offered on the market but is better adapted for unit which maintenance is done on the sides thanks to its removable sides.

In addition to the 4 standard colours, VENITIAN can be personalized in any RAL colours for a perfect integration (extra cost of 25%).





Standards and warranty

The OUTSTEEL casings have been tested by CERIC laboratory.

The OUTSTEEL products have a warranty of 2 years . More info

Poujoulat-produit Poujoulat-produit-mobile

Technical data

Powder-coated galvanized steel.

Inner dimensions (long x height x deepness) :

- S model : 925 x 775 x 471 mm
- M model : 1025 x 825 x 521 mm
- L model : 1125 x 925 x 571 mm

On the wall-fixed models, the deepness can be adjusted on any of the 3 models : 100 mm

Weight :

- From 20 kg to 42 kg

Top :

- Can support up to 15 kg

Available in 4 standard colours (all the models come with a wood-like top) :

RAL 9001 - Cream

RAL 7016 - Anthracite grey

RAL 9005 - Jet Black

RAL 6005 - Moss green

Other RAL colours : extra cost of 25%

Documentations

Made in France, the OUTSTEEL casings for outside units are easy to install. Follow in the video below the steps of installation of the VENITIAN model :

> View and download the installation instruction of VENITIAN casing

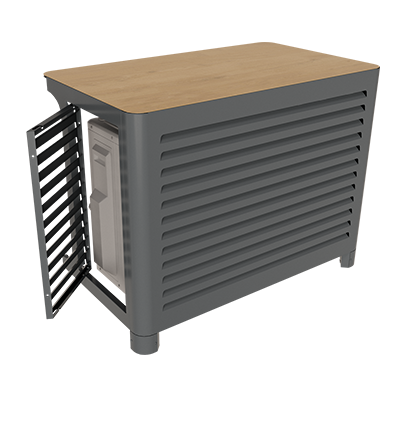

The VENITIAN model has two removable sides for an easy access to the unit as per the rules.
